Description

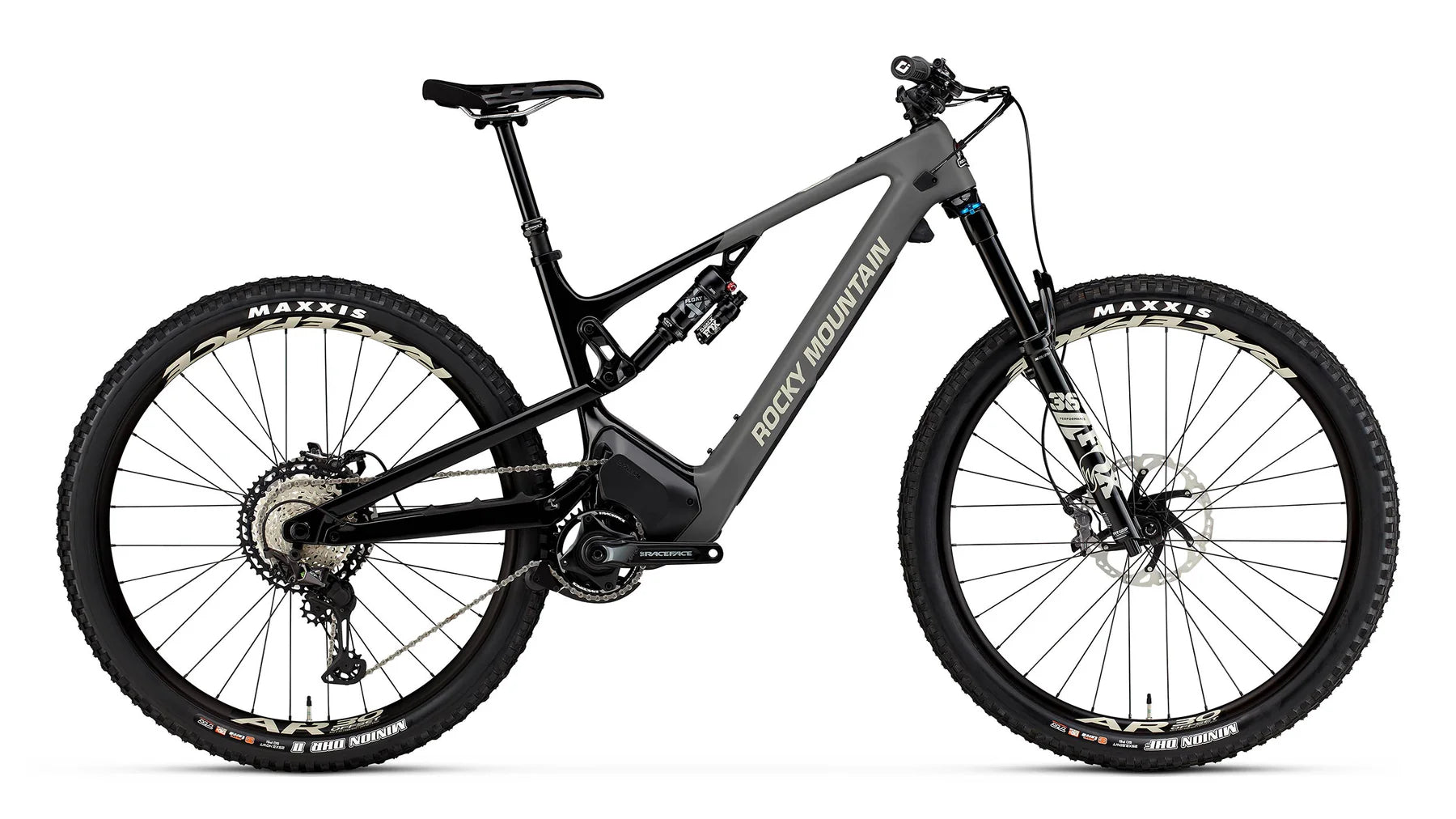

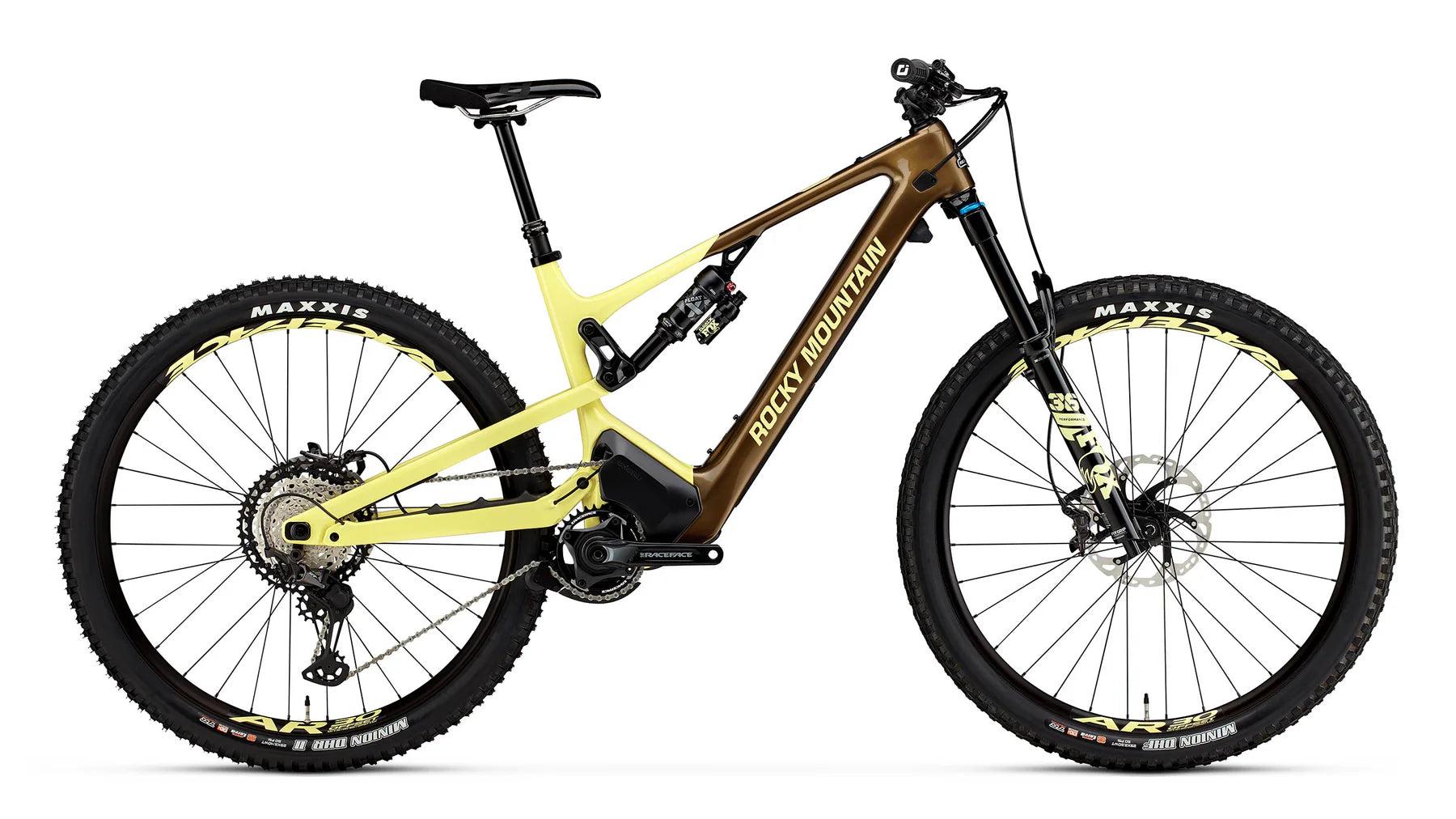

The Instinct Powerplay is built for exploration. Versatile geometry, dialed kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
Specifications
Frame
SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork
Fox 36 E-MTB Float EVOL GRIP Performance 150mm | 44mm Offset
Front Travel
150
Shock
Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ
Rear Travel
140
Headset
FSA Orbit NO.57E ZS44|56 | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Handlebar
Rocky Mountain AM Carbon 780mm
Grips
ODI Elite Pro Lock On
Brakes
Shimano XT Trail 4 Piston | Metal Pads
Shifters
Shimano XT
Rear Derailleur
Shimano XT
Cranks & Chainring
Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Cassette
Shimano XT 10-51T
Chain
Shimano M8100
Front Hub
Rocky Mountain SL Sealed Boost 15mm
Rear Hub
DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
Spokes
F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
Rims
Race Face AR 30 | 32H / Tubeless Ready - Tape / Valves Incl
Tires
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready //
Seatpost
Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Saddle
WTB Volt Race 142
Drive System
Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Remote
Rocky Mountain Micro Remote
Display
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger
Rocky Mountain Powerplay FAST Charger V1 | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
Weight
50.4 LBS|22.9 KGS
